THE LOW LOSS SOLUTION FOR FIBER LASER APPLICATIONS

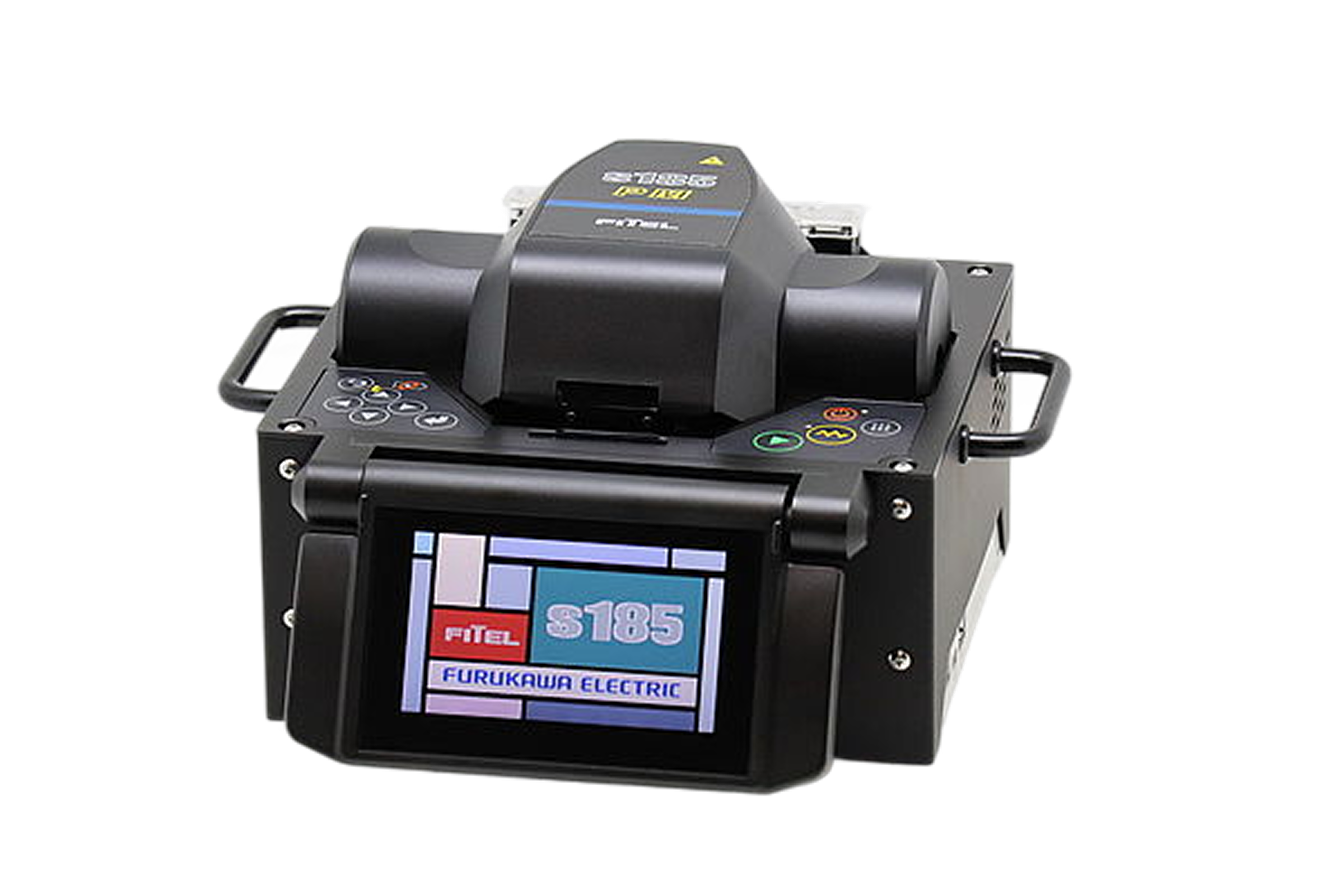

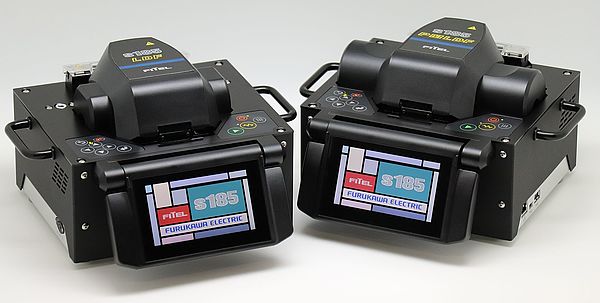

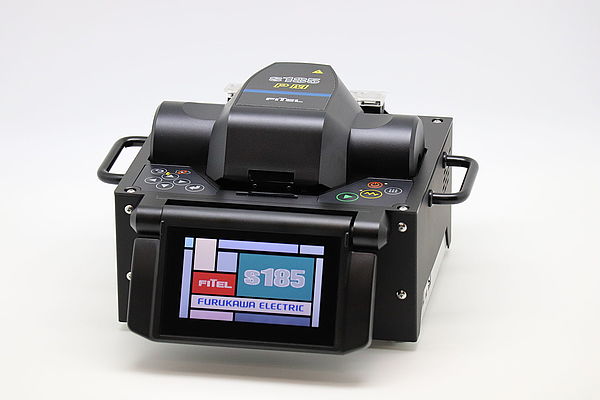

FITEL S185LDF / S185PMLDF High-end Fusion Splicers
The FITEL S185LDF / S185PMLDF High-end Fusion Splicers are designed for splicing standard diameter 80 μm up to 500 μm cladding fiber with low splice loss. The powerful and compact design has been optimized for the fiber laser industry. The new fiber alignment mechanism achieves low splice loss and the new design allows for the fiber clamps to land gently to reduce the possibility of damage to fiber. Battery operation and a compact design make transportation easy for the LDF Fusion splicer.
