FABRICATION-FOCUSED BRAGG GRATING DESIGN TOOL

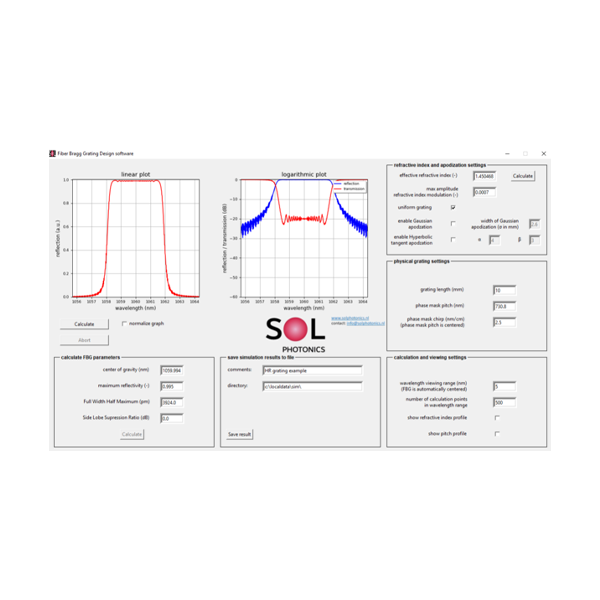

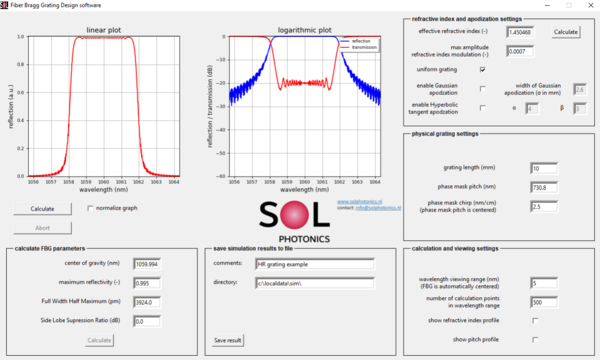

Grating Design Software (GDS)
Grating Design Software (GDS) from Sol Photonics is an user friendly simulation tool to easily design Fiber Bragg Gratings (FBG’s).
Unlike other FBG simulation tools GDS has a direct link with reality, i.e. FBG manufacturing using the phasemask method. In GDS the simulation parameters are defined based on the phasemask pitch and chirp rate. Furthermore, the effective refractive index of the fiber is calculated by inserting parameters from the fiber manufacturer.
Simulations made with GDS has been extensively tested in real world applications.
Unique Features
- Uniform Fiber Bragg Gratings
- Apodized gratings
- Linear chirped gratings
- FBG center wavelength, FWHM, SLSR, and Reflectivity
- Fiber mode solver (LP01 mode)
- Phase mask parameters
- Fiber parameters
Related links
Solutions That Covers the Entire Production Cycle
FBG Manufacturing ❖
NORIA – Fiber Bragg Grating manufacturing solution ❖
Grating Design Software (GDS) ❖
Inspection & Testing ❖
NorthLab Interferometer, ProView LD – for connectors ❖
NorthLab Interferometer, ProView LD ❖
Fusion Splicing ❖
3SAE Large Diameter Fiber Splicing Station, LDS II ❖
3SAE Combiner Manufacturing Station, CMS ❖
Fiber Cleaving ❖
3SAE Liquid Clamp Cleaver LDF, LCC II ❖

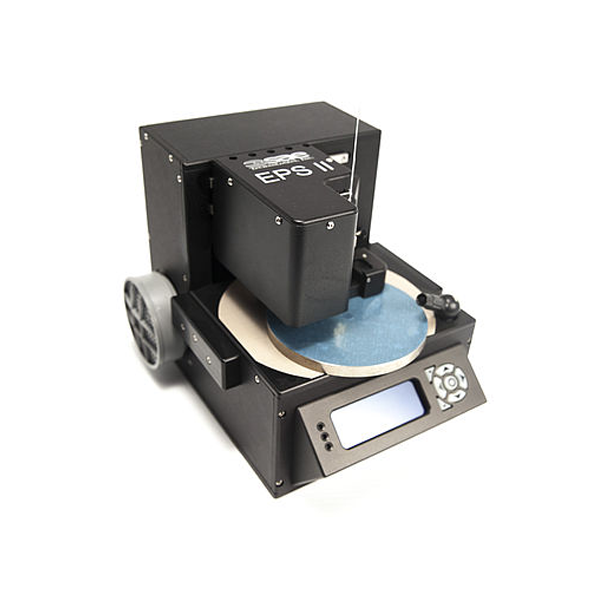

3SAE End Face Prep Station, EPS II ❖
