MODULAR SYSTEM FOR HIGH-POWER FIBER COMPONENTS
3SAE Large Diameter Fiber Splicing Station, LDS II

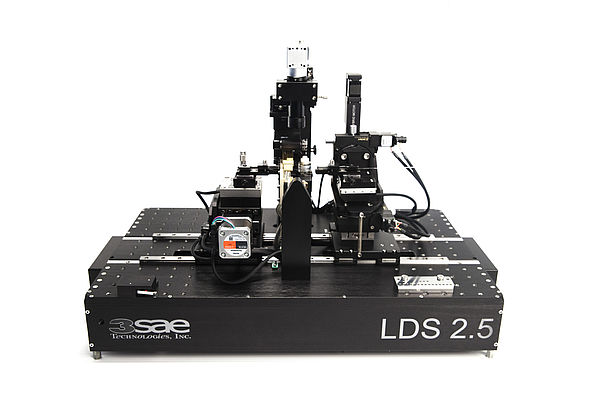

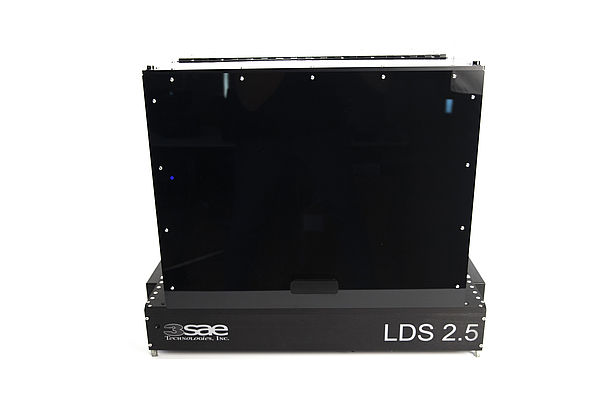

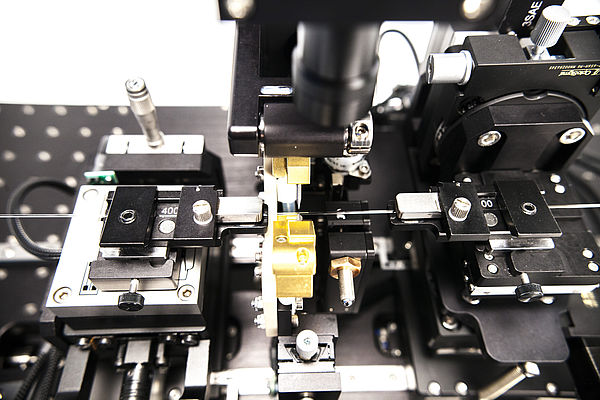

The LDS 2.5 is the latest version of our multipurpose fiber splicing and processing system for fiber diameters ranging from 125 to 2000 µm.
The LDS 2.5 is utilizing our 30 years of fiber splicing and processing experience and it is specifically designed with flexibility in mind. The LDS 2.5 is a modular system which can be adapted and customized for production of different fused optical components such as high-power fiber combiners, mode field adapters, fiber probes, end cap splicing and splicing dissimilar sized standard or exotic fiber combinations. The LDS 2.5 provides capabilities that overcome the hurdles of current fiber component fabrication processes to meet the most demanding requirements.
